メカナムホイールラジコンを作る その3

前回の続き。

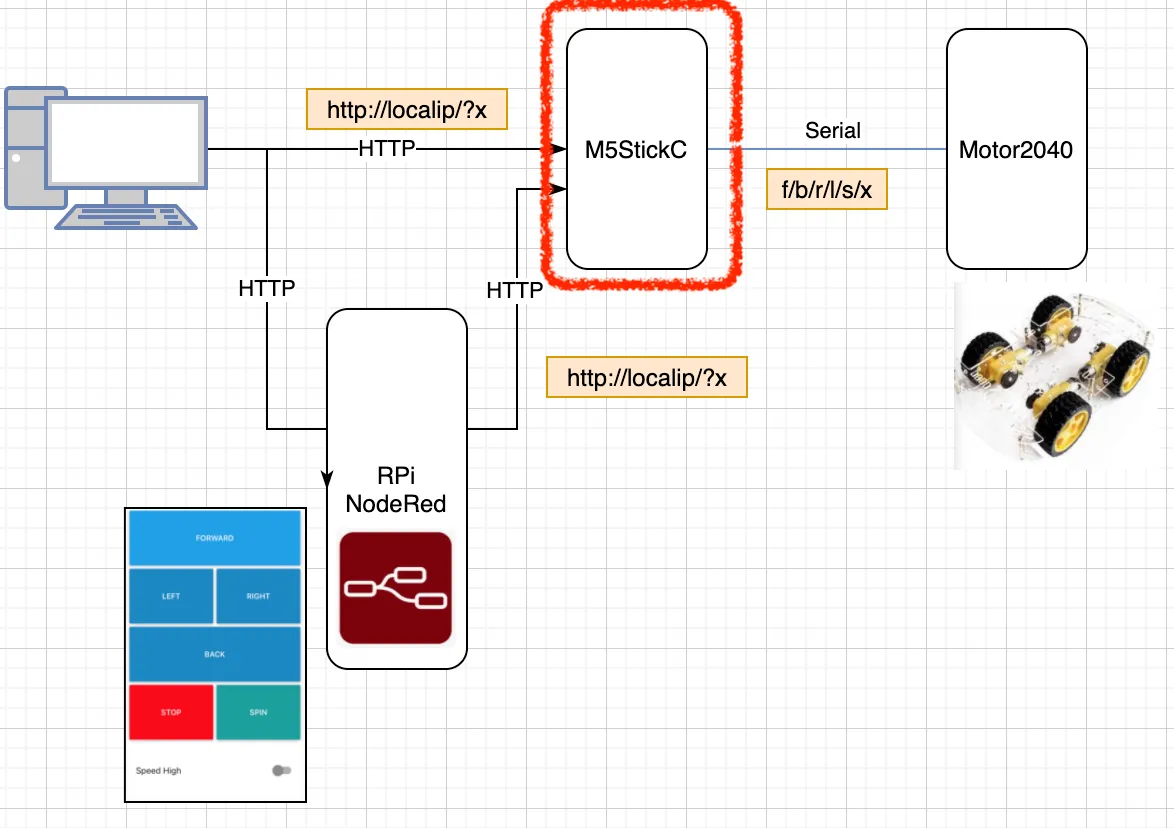

M5StickCでWifi と SerialのI/Fを作る。

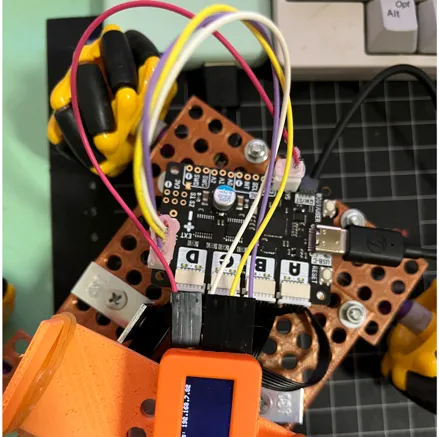

配線

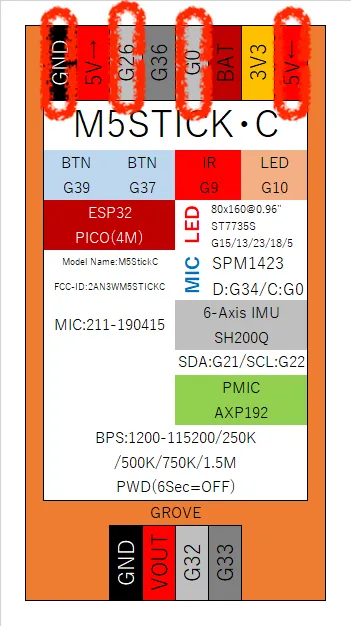

G26とG0をRX/TXに利用する。
program
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
#include <M5StickC.h> | |
#include <WiFi.h> | |
#include "time.h" | |
#include <HTTPClient.h> | |
#include <HTTPServer.hpp> | |
#include <HTTPRequest.hpp> | |
#include <HTTPResponse.hpp> | |
using namespace httpsserver; | |
HTTPServer insecureServer = HTTPServer(); | |
void handleRoot(HTTPRequest *req, HTTPResponse *res); | |
const char *ssid = "ssid"; | |
const char *password = "pass"; | |
#define PIN_LED 10 | |
#define PIN_ANALOG_READ 33 | |
WiFiClient client; | |
int last_min = -1; | |
// | |
// setup RTC by NTP | |
// | |
void setup_rtc() | |
{ | |
struct tm timeinfo; | |
uint8_t hh, mm, ss; | |
RTC_TimeTypeDef TimeStruct; | |
// connect NTP server | |
configTime(9 * 3600, 0, "ntp.nict.jp", "ntp.jst.mfeed.ad.jp"); | |
if (!getLocalTime(&timeinfo)) | |
{ | |
M5.Lcd.println("Failed to obtain time"); | |
return; | |
} | |
// | |
// set localtime to RTC | |
// | |
hh = timeinfo.tm_hour; | |
mm = timeinfo.tm_min; | |
ss = timeinfo.tm_sec; | |
// Serial.printf("%02d:%02d:%02d\r\n", hh, mm, ss); | |
TimeStruct.Hours = hh; | |
TimeStruct.Minutes = mm; | |
TimeStruct.Seconds = ss; | |
M5.Rtc.SetTime(&TimeStruct); | |
} | |
// | |
// connect wifi | |
// | |
int setup_wifi() | |
{ | |
M5.Lcd.setTextSize(1); | |
M5.Lcd.setCursor(0, 0); | |
M5.Lcd.fillScreen(BLACK); | |
M5.Lcd.setTextColor(DARKGREY); | |
M5.Lcd.print("Connecting to "); | |
// Serial.println("Connecting to "); | |
M5.Lcd.printf(ssid); | |
WiFi.begin(ssid, password); // connect to wifi | |
int count = 49; | |
while (WiFi.status() != WL_CONNECTED) | |
{ | |
delay(800); | |
M5.Lcd.print("."); | |
count -= 1; | |
if ((count % 10) == 0) | |
{ | |
// Serial.println("max try failed"); | |
WiFi.disconnect(); | |
delay(500); | |
WiFi.begin(ssid, password); | |
} | |
if (count == 0) | |
{ | |
M5.Lcd.println("WiFi connected failed."); | |
return -1; | |
} | |
} | |
M5.Lcd.fillScreen(BLACK); | |
M5.Lcd.setCursor(0, 0); | |
M5.Lcd.print("IP address: "); | |
M5.Lcd.println(WiFi.localIP()); | |
M5.Lcd.println(""); | |
return 0; | |
} | |
void setup_server() | |
{ | |
ResourceNode *nodeRoot = new ResourceNode("/", "GET", &handleRoot); | |
insecureServer.registerNode(nodeRoot); | |
Serial.println("Starting HTTP server..."); | |
insecureServer.start(); | |
while (!insecureServer.isRunning()) | |
{ | |
delay(800); | |
M5.Lcd.setTextColor(RED); | |
M5.Lcd.print("."); | |
} | |
} | |
void setup() | |
{ | |
Serial.begin(9600); | |
M5.begin(); | |
M5.Axp.ScreenBreath(10); | |
M5.Lcd.setRotation(3); // 左を上にす | |
M5.Lcd.setTextSize(1); | |
M5.Lcd.fillScreen(BLACK); | |
M5.Lcd.setTextColor(DARKGREY); | |
delay(500); | |
// PIN MODE setup | |
pinMode(PIN_ANALOG_READ, INPUT); // GROVE input | |
pinMode(PIN_LED, OUTPUT); // LED | |
// | |
// Wifi | |
// | |
digitalWrite(PIN_LED, LOW); | |
setup_wifi(); | |
digitalWrite(PIN_LED, HIGH); | |
// | |
// setup RTC time | |
// | |
setup_rtc(); | |
// Grove Serial | |
Serial1.begin(115200, SERIAL_8N1, 0, 26); // Grove | |
// | |
// setup HTTP server | |
// | |
setup_server(); | |
} | |
void loop() | |
{ | |
const int WAIT_TIME = 500; | |
RTC_TimeTypeDef RTC_TimeStruct; | |
if (WiFi.status() != WL_CONNECTED) | |
{ | |
Serial.println("not connect"); | |
if (setup_wifi() < 0) | |
{ | |
delay(WAIT_TIME * 10); | |
return; | |
} | |
// Serial.println("connect ok"); | |
} | |
// pinの状態など更新 | |
M5.update(); | |
insecureServer.loop(); | |
// get time | |
M5.Rtc.GetTime(&RTC_TimeStruct); | |
// button status | |
int pressed = M5.BtnA.wasPressed(); | |
if (pressed == 1 || last_min != RTC_TimeStruct.Minutes) | |
{ | |
last_min = RTC_TimeStruct.Minutes; | |
// display values on LCD | |
M5.Lcd.setTextSize(2); | |
M5.Lcd.setCursor(0, 4 * 8); | |
M5.Lcd.setTextColor(DARKGREEN); | |
M5.Lcd.fillRect(0, 4 * 8, 256, 32, BLACK); | |
M5.Lcd.setTextSize(1); | |
M5.Lcd.setCursor(32, 9 * 8); | |
M5.Lcd.setTextColor(DARKGREEN); | |
M5.Lcd.fillRect(0, 9 * 8, 256, 12, BLACK); | |
M5.Lcd.printf("Time: %02d : %02d : %02d\n", | |
RTC_TimeStruct.Hours, RTC_TimeStruct.Minutes, RTC_TimeStruct.Seconds); | |
} | |
delay(WAIT_TIME / 10); | |
} | |
void handleRoot(HTTPRequest *req, HTTPResponse *res) | |
{ | |
std::string param = req->getRequestString(); | |
res->setHeader("Content-Type", "text/html"); | |
res->println("<!DOCTYPE html>"); | |
res->println("<html>"); | |
res->println("<body>"); | |
res->print("<p>Your server is running for "); | |
res->print((int)(millis() / 1000), DEC); | |
res->println(" seconds.</p>"); | |
res->println(param.c_str()); | |
res->println("</body>"); | |
res->println("</html>"); | |
Serial1.println(param.c_str()); | |
} |

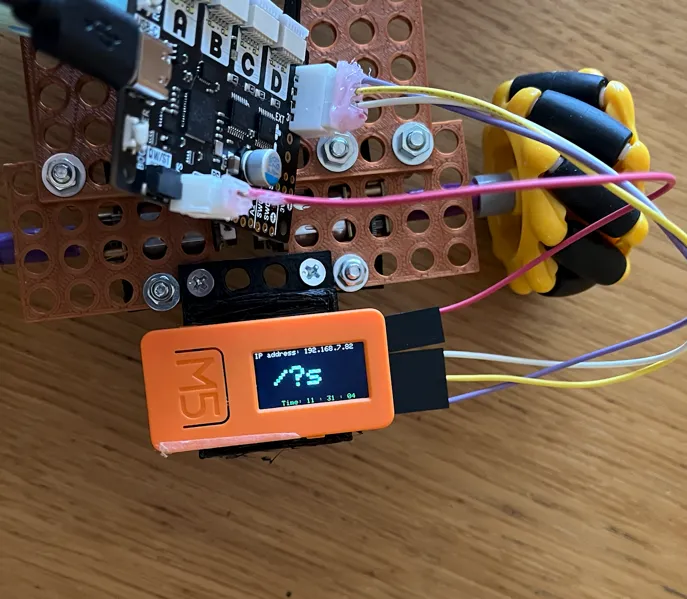

テスト
配線し、M5StickCの準備ができたら、Mac/PCからHTTPで、試してみる。 f
は、 forward
curl http://M5StickCのIP/?f
これで、めでたく動いたら、次回へ続く。
